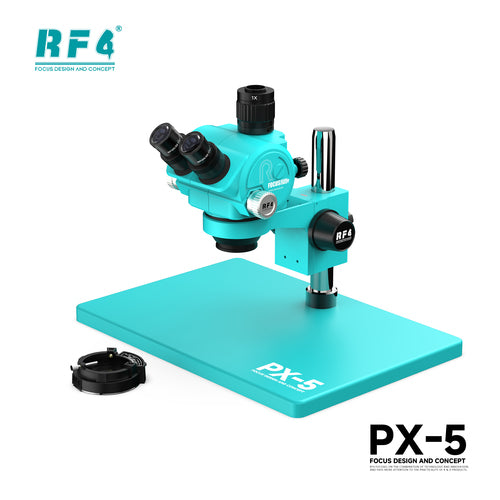

RF4 PX-5 Synchronous Zoom Trinocular Stereo Microscope

RF4 PX-5 7-50X Synchronous Zoom Trinocular Stereo Microscope

Features:

10X HD wide-angle eyepieces, large diameter, wide field of vision, and long-term use are not easy to fatigue

7-50X optical continuous zoom objective lens, the total magnification reaches 7X-50X, standard working distance up to 100mm

Giving dust-proof, oil-proof, temperature lens, prevents eyepiece pollution, safe and durable

The eyepiece visual field reflection adjustment, giving a dust-proof, oil-proof, high-temperature lens, prevents eyepiece pollution, is safe, and durable

Both eyepieces support refractive adjustment, suitable for people with different eye distances

7-50x continuous zoom, optical system, large magnification continuous zoom imaging, sharp without distortion, can correctly dock concave and convex objects to get full three-dimensional images

HD coated dust mirror effectively prevents dust, smoke, and oil pollution from entering the internal image, blurs, ensuring good light transmittance without affecting imaging

Continuous zoom range of 7X to 50X, precisely capturing every detail, even the minutest repair details are clearly visible

Equipped with 260*380mm a metal base plate, providing big “hard” core support

Specification:

Magnification: Continuous zoom 7X to 50X

Head: 45-degree inclined, 360-degree swiveling trinocular

Eyepiece: WF10X/22MM adjustable

Objective: 0.7-5.0X

Zoom Knob: Metal knob 7 gear zoom

Camera connector: 1X CTV (Monitor and eyepiece Synchronous zoom)

Wide-angle Eyepieces 10X/22:

Magnification: 10X

Wide field of view 22mm

Matching size: 30mm

Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
