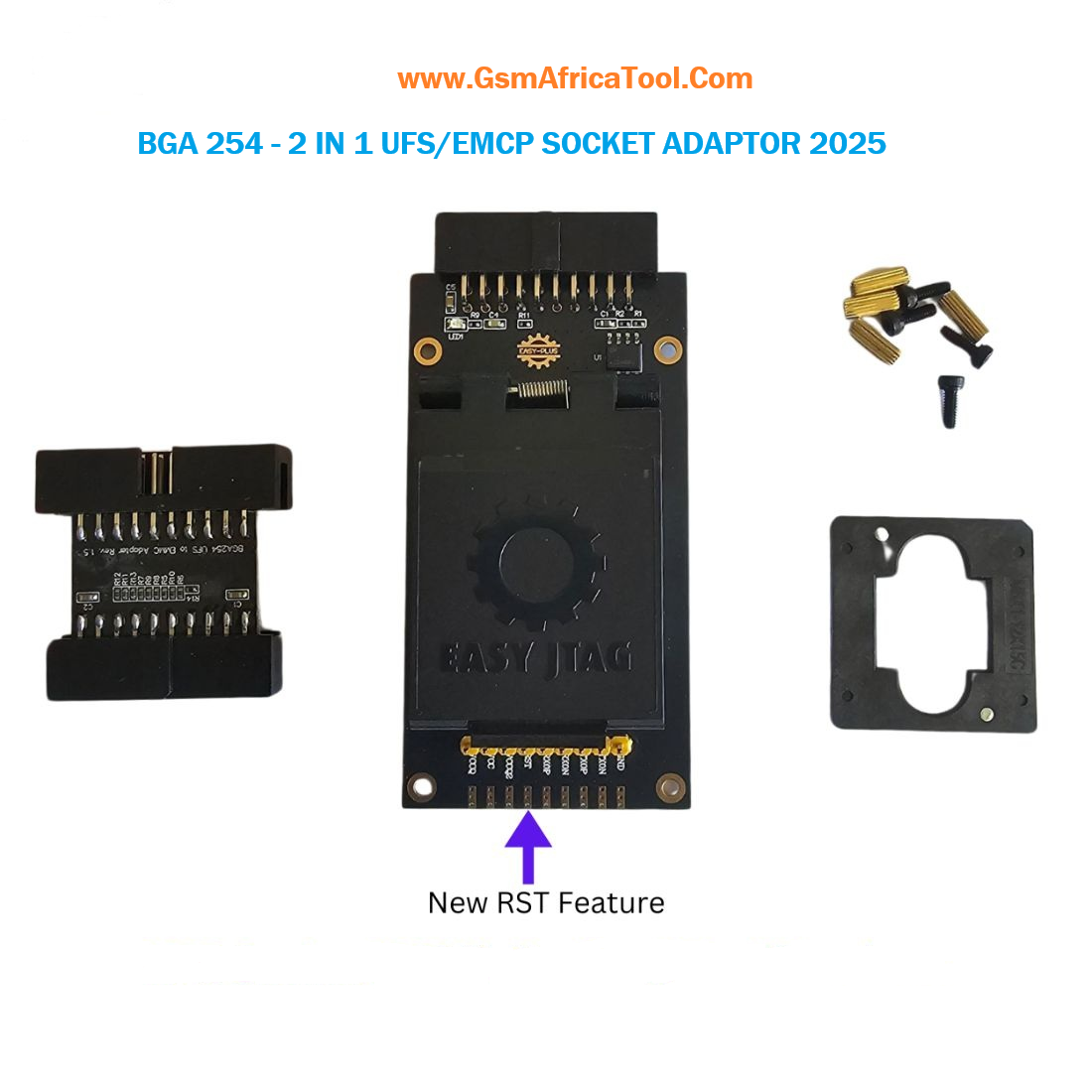

Z3X Easy-Jtag Plus [BGA-254 2-in-1 UFS Socket] With RST feature (2026 Edition)

The Gold Standard for Flash Programming in 2026

As mobile storage transitions to higher densities and more complex security protocols, the Z3X BGA-254 2-in-1 Socket remains the industry leader for stability and speed. This 2026 version is specifically optimized for the Z3X Easy-Jtag Plus Box, providing a seamless bridge between the software interface and the raw silicon of the BGA-254 chip.

Key Features:

Dual-Protocol 2-in-1 Design: A single high-precision socket that handles both UFS and eMMC BGA-254 chips. This eliminates the cost and clutter of maintaining separate adapters for different storage types.

Exclusive Hardware RST (Reset) Feature: The 2026 edition includes a dedicated hardware reset circuit. This is critical for communicating with chips that have crashed firmware or are stuck in a “busy” state, allowing for a clean initialization without power-cycling the entire box.

Ultra-High-Speed Data Throughput: Optimized for the Easy-Jtag Plus 8-bit bus, achieving maximum transfer speeds for massive $256\text{GB}$, $512\text{GB}$, and $1\text{TB}$ storage dumps.

High-Durability Pogo Pins: Constructed with premium, wear-resistant gold-plated pogo pins that ensure perfect contact even after thousands of chip insertions.

Intelligent Thermal Dissipation: The socket housing is designed with ventilation to prevent chip overheating during long-duration full-dump operations.

Universal BGA-254 Support: Compatible with chips from Samsung, SK Hynix, Micron, and Sandisk found in the latest 5G smartphones and high-end tablets.

Technical Specifications:

Socket Type: BGA-254 (2-in-1)

Supported Standards: UFS (up to 4.0), eMMC (up to 5.1)

Special Function: Dedicated Hardware Reset (RST) Button

Interface: Z3X Easy-Jtag Plus 20-Pin / 30-Pin Connector

Model Year: 2026 (Latest Revision)
